Epoxy Injection Grout: Complete Manual for Repairing Structural Cracks

Introduction to Epoxy Injection Grout

Epoxy injection grout is a specialised method for repairing structural cracks in concrete and masonry. This technique includes injecting low-viscosity epoxy resin into cracks to restore the structural integrity of the affected element. Unlike floor remedies, epoxy injection grout penetrates deep into the crack, bonding the fractured sections and preventing further deterioration. This way is essential for preserving the sturdiness and safety of numerous structures, which consist of houses, bridges, and business centers.

Table of Contents

Types of Cracks Suitable for Epoxy Injection Grout

Epoxy injection grout is effective for repairing several types of cracks:

Structural Cracks: These are the end result of immoderate loads or stress and might compromise the integrity of the form. Epoxy injection crack repair restores the authentic energy by bonding the cracked sections.

Shrinkage Cracks: Occur because of the drying and curing approach of concrete. While regularly non-structural, they might allow moisture ingress, specifically due to corrosion. Epoxy injection seals these cracks, preventing similar damage.

Hairline Cracks: Very satisfactory cracks that won’t appear massive but can extend over time. Epoxy’s low viscosity permits it to penetrate and seal these slim fissures efficaciously.

Non-structural cracks: Result from thermal changes or minor settling. While they do not have an effect on structural integrity, sealing them with epoxy prevents moisture penetration and the capacity to reinforce corrosion.

It’s important to be aware that epoxy injection crack repair is exquisite and ideal for dormant cracks. Active or shifting cracks might also require alternative answers, including flexible polyurethane injections.

Step-by-Step Overview of the Epoxy Injection Process

Inspection and Assessment: Identify the extent and nature of the cracks. Determine if the crack is dormant and suitable for epoxy injection.

Surface Preparation: Clean the area around the crack filler epoxy to remove dirt, oil, or any contaminants. This ensures proper adhesion of the epoxy.

Sealing the Surface: Apply an epoxy paste over the crack’s surface to prevent the injected epoxy from leaking out. Leave entry and vent ports unsealed.

Installing Injection Ports: Place injection ports at intervals along the crack. These ports serve as entry points for the epoxy resin.

Mixing the Epoxy: Prepare the epoxy resin and hardener according to the manufacturer’s instructions. Ensure a consistent mixture for optimal performance.

Injecting the Epoxy: Using a suitable injection device, introduce the epoxy into the lowest port. Continue injecting until the resin flows out of the next port, indicating the crack is filled. Plug the first port and proceed sequentially.

Curing: Allow the epoxy to cure as per the specified time. Curing times can vary based on the product and environmental conditions.

Finishing: Once cured, remove the surface seal and injection ports. Grind or sand the area for a smooth finish if necessary.

This meticulous method ensures that the crack may be very well crammed, restoring the structural integrity of the concrete detail.

Comparing Epoxy Injection Grout to Other Crack Repair Methods

When addressing cracks in concrete structures, several repair methods are available. Here’s how epoxy injection grout compares:

Epoxy Injection Grout:

Advantages: Provides structural energy, notable adhesion, and long-term durability. Ideal for dormant cracks in load-bearing structures.

Limitations: Not suitable for active cracks or areas with ongoing movement.

Polyurethane Injection:

Advantages: Flexible and can accommodate slight movements. Effective in sealing leaking cracks.

Limitations: Does not restore structural strength

Cementitious Grouting:

Advantages: Cost-effective and suitable for wide cracks.

Limitations: Lower adhesion and strength compared to epoxy.

Routing and Sealing:

Advantages: Simple and quick approach for non-structural cracks.

Limitations: Surface-level repair that doesn’t address internal crack propagation.

Epoxy injection grout stands out for its ability to repair the authentic structural capacity of cracked elements, making it the favored choice for vital maintenance.

Case Studies: Infrastructure and Industrial Applications

1. Bridge Deck Rehabilitation:

A highway bridge developed a couple of hairline cracks because of thermal expansion and contraction. Engineers employed epoxy injection grout to fill these cracks, restoring the deck’s integrity and increasing its service life.

2. Industrial Floor Repair:

In a manufacturing facility, heavy devices added approximately strain cracks in the concrete floor. Injectable epoxy is used to bond the cracks, preventing in addition deterioration and ensuring a secure running environment.

3. Dam Maintenance:

A concrete dam exhibited shrinkage cracks that posed a chance of water seepage. Epoxy injection grout turned into completed to seal the cracks, retaining the dam’s structural soundness and preventing functionality disasters.

4. Parking Garage Restoration:

A multi-disciplinary parking shape confirmed signs and symptoms of cracking due to load strain and environmental factors. Epoxy mortar was utilised to repair the cracks, improving the storage’s sturdiness and protection for customers.

Conclusion

Epoxy injection grout is a demonstrated approach for concrete epoxy for cracks and masonry. Its capability to restore electricity, save you from moisture ingress, and growth the lifespan of systems makes it a useful device in creation and protection. By information on the styles of cracks appropriate for this method, the specific injection system, and the way it compares to different repair techniques, professionals ought to make informed choices to ensure the safety and sturdiness of their structures.

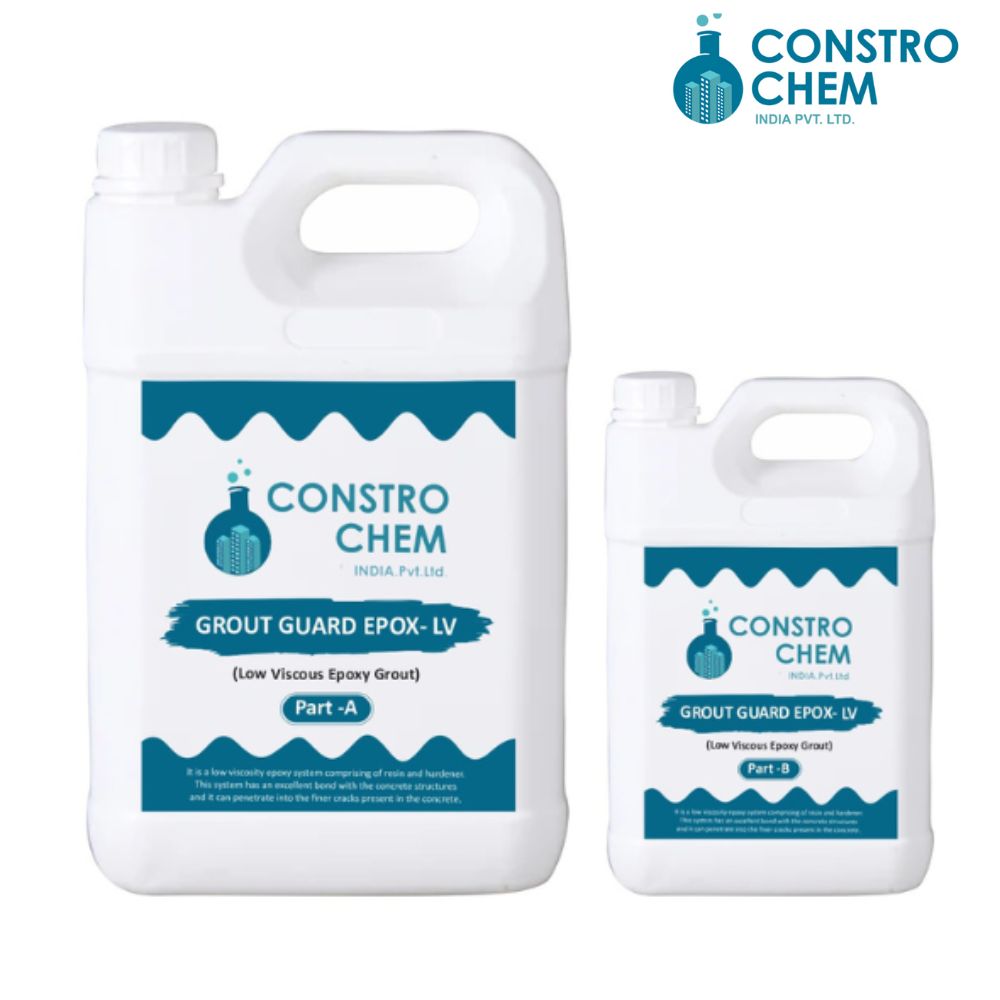

Constro Chem India Pvt Ltd gives top-rate, high-quality epoxy injection grout solutions that ensure superior overall performance, reliability, and value effectiveness. Our product is extensively trusted by civil engineers, contractors, and infrastructure builders across India.
