Understanding Roll Forming Machines: The Backbone of Precision Metal Shaping

Roll forming machines are vital pieces of equipment in modern manufacturing, especially in industries that require high precision in shaping metal sheets. They are used extensively in producing parts for construction, automotive, and HVAC systems, among many other sectors. These machines are designed to transform flat metal sheets into complex shapes, all while maintaining consistency, strength, and efficiency in the process. If you’re in search of a solution to streamline your production processes, a roll forming machine could be exactly what you need.

What is a Roll Forming Machine?

A roll forming machine is a specialized piece of machinery that performs continuous bending operations on a strip of sheet metal. The process involves feeding the metal sheet through a series of rollers that gradually shape it into the desired profile. The result is a product with uniform dimensions and high structural integrity. Roll forming is ideal for producing parts that require long lengths and consistent shapes, such as metal roofing panels, siding, and structural components.

How Does a Roll Forming Machine Work?

The process begins when a flat metal strip enters the roll forming machine. The metal strip passes through a series of rollers, each performing a specific bending operation. The rollers are set to precise angles to shape the metal gradually, with each station adding a small bend to the metal strip. Over time, the sheet metal is transformed into the desired profile, which is then cut to the appropriate length. The continuous nature of the process makes it highly efficient, especially when working with long production runs.

Key Components of a Roll Forming Machine

A roll forming machine consists of several key components that contribute to its efficiency and effectiveness:

1. Uncoiler: This component unwinds the metal coil and feeds it into the machine. It ensures that the material is properly aligned and tensioned.

2. Feeding Mechanism: The feeding mechanism controls the speed and alignment of the metal strip as it moves through the machine.

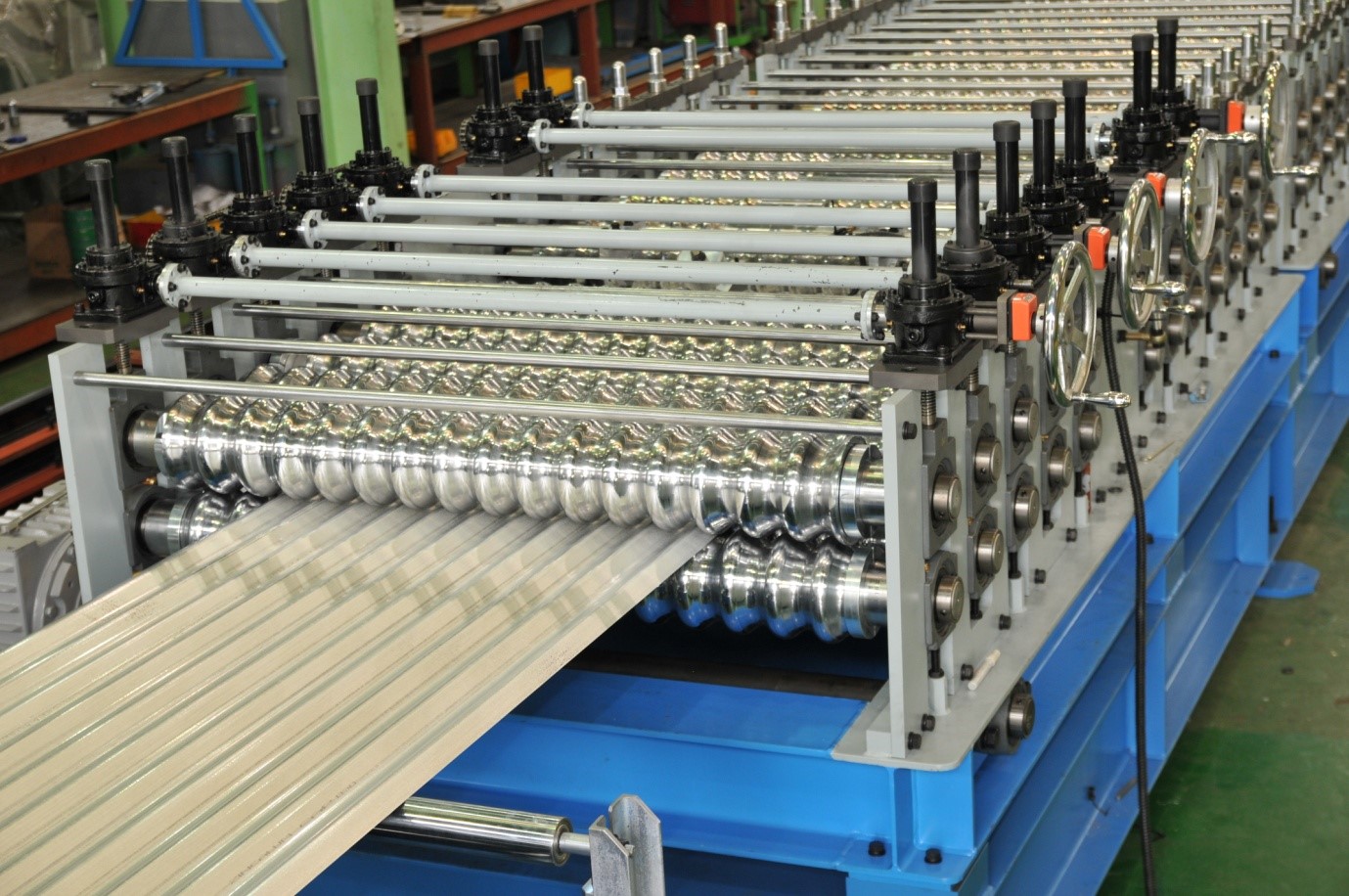

3. Roller Stations: These are the heart of the machine, where the bending occurs. Each station has a roller that progressively bends the metal into the desired profile.

4. Cutting Station: After the metal has been formed, it is cut to the required length. This cutting can be done either by a shear or a flying cut mechanism, depending on the machine’s design.

5. Control Panel: Modern roll forming machines are equipped with digital controls that allow operators to set parameters such as speed, angle, and cutting length with high precision.

Advantages of Using Roll Forming Machines

1. High Precision: One of the primary benefits of using a roll forming machine is its ability to produce parts with consistent and accurate dimensions. This precision is particularly important in industries like construction and automotive, where the smallest deviation can lead to significant issues.

2. Cost-Effective: While the initial investment in a roll forming machine can be significant, the long-term savings are substantial. The high-speed, continuous nature of the process means that large volumes of products can be produced at lower costs compared to traditional metalworking methods.

3. Versatility: Roll forming machines can be used to create a wide variety of metal profiles, including complex shapes and designs. This versatility allows manufacturers to produce a diverse range of products, from simple roofing panels to more intricate parts used in industrial applications.

4. Minimal Waste: Because the metal strip is shaped without being cut or drilled in most cases, the process generates very little waste. This not only helps reduce material costs but also contributes to a more sustainable manufacturing process.

5. Durability and Strength: Products made with a roll forming machine are typically stronger than those produced by other methods. The process strengthens the material, which is beneficial for applications that require structural integrity.

Applications of Roll Forming Machines

Roll forming machines are used across various industries due to their efficiency and versatility. Here are some of the most common applications:

1. Construction Industry: Roll forming is widely used in the production of roofing panels, metal siding, and structural components. The ability to create durable, long-lasting materials makes it ideal for building infrastructure.

2. Automotive Industry: In the automotive sector, roll forming machines are used to produce parts such as bumpers, door panels, and other structural components. The precision of the process ensures that the parts fit perfectly and meet stringent quality standards.

3. HVAC Systems: The HVAC industry utilizes roll forming machines to create ductwork, air conditioning components, and other metal parts. The ability to produce consistent shapes and sizes is critical in this industry, where tight tolerances are necessary.

4. Agricultural Equipment: Roll forming is also used to manufacture parts for agricultural machinery, such as frames, panels, and structural components.

5. Electrical Industry: Roll formed metal is used in electrical panels, conduit systems, and other essential components, where both precision and durability are important.

Choosing the Right Roll Forming Machine

When selecting a roll forming machine for your business, it’s essential to consider several factors, such as the types of materials you’ll be working with, the desired output speed, and the complexity of the parts you need to create. Investing in a high-quality, reliable machine will help streamline your production process, reduce costs, and increase efficiency. Additionally, modern machines often come equipped with advanced control systems that provide greater flexibility and precision in operation.

Conclusion

Roll forming machines are indispensable in the manufacturing world, offering unmatched precision, efficiency, and versatility. Whether you’re in the construction, automotive, HVAC, or any other sector that requires high-quality metal parts, a roll forming machine can significantly improve your production capabilities. By understanding how these machines work and the benefits they offer, businesses can make informed decisions about their manufacturing processes and improve their overall output. As industries continue to demand faster production times and more complex designs, the role of roll forming machines will only continue to grow in importance.
